Asymptotic analysis & Amortized analysis

Asymptotic analysis of an algorithm refers to defining the mathematical boundation/framing of its run-time performance. Using asymptotic analysis, we can very well conclude the best case, average case, and worst case scenario of an algorithm.

Asymptotic analysis is input bound i.e., if there's no input to the algorithm, it is concluded to work in a constant time. Other than the "input" all other factors are considered constant.

Asymptotic analysis refers to computing the running time of any operation in mathematical units of computation. For example, the running time of one operation is computed as f(n) and may be for another operation it is computed as g(n2). This means the first operation running time will increase linearly with the increase in n and the running time of the second operation will increase exponentially when n increases. Similarly, the running time of both operations will be nearly the same if n is significantly small.

Usually, the time required by an algorithm falls under three types −

• Best Case − Minimum time required for program execution.

• Average Case − Average time required for program execution.

• Worst Case − Maximum time required for program execution.

Asymptotic Notations

Following are the commonly used asymptotic notations to calculate the running time complexity of an algorithm.

• Ο Notation
• Ω Notation
• θ Notation

Big Oh Notation, Ο

The notation Ο(n) is the formal way to express the upper bound of an algorithm's running time. It measures the worst case time complexity or the longest amount of time an algorithm can possibly take to complete.

For example, for a function f(n)

Ο(f(n)) = { g(n) : there exists c > 0 and n0 such that f(n) ≤ c.g(n) for all n > n0. }

Omega Notation, Ω

The notation Ω(n) is the formal way to express the lower bound of an algorithm's running time. It measures the best case time complexity or the best amount of time an algorithm can possibly take to complete.

For example, for a function f(n)

Ω(f(n)) ≥ { g(n) : there exists c > 0 and n0 such that g(n) ≤ c.f(n) for all n > n0. }

Theta Notation, θ

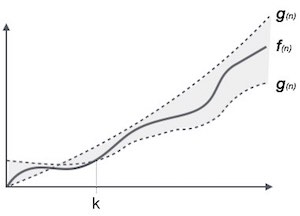

The notation θ(n) is the formal way to express both the lower bound and the upper bound of an algorithm's running time. It is represented as follows −

θ(f(n)) = { g(n) if and only if g(n) = Ο(f(n)) and g(n) = Ω(f(n)) for all n > n0. }

Common Asymptotic Notations

Following is a list of some common asymptotic notations −

constant	−	Ο(1)
logarithmic	−	Ο(log n)
linear	−	Ο(n)
n log n	−	Ο(n log n)
quadratic	−	Ο(n2)
cubic	−	Ο(n3)
polynomial	−	nΟ(1)
exponential	−	2Ο(n)



---



Amortized analysis involves estimating the run time for the sequence of operations in a program without taking into consideration the span of the data distribution in the input values. A simple example is finding a value in a sorted list is quicker than in an unsorted list. If the list is already sorted, it does not matter how distributed the data is. But of course the length of the list has an impact as it decides the number of steps the algorithm has to go through to get the final result.



So we see that if the initial cost of a single step of obtaining a sorted list is high, then the cost of subsequent steps of finding an element becomes considerably low. So Amortized analysis helps us find a bound on the worst-case running time for a sequence of operations. There are three approaches to amortized analysis.



• Accounting Method − This involves assigning a cost to each operation performed. If the actual operation finishes quicker than the assigned time then some positive credit is accumulated in the analysis. In the reverse scenario it will be negative credit. To keep track of these accumulated credits, we use a stack or tree data structure. The operations which are carried out early ( like sorting the list) have high amortized cost but the operations that are late in sequence have lower amortized cost as the accumulated credit is utilized. So the amortized cost is an upper bound of actual cost.

• Potential Method − In this method the saved credit is utilized for future operations as mathematical function of the state of the data structure. The evaluation of the mathematical function and the amortized cost should be equal. So when the actual cost is greater than amortized cost there is a decrease in potential and it is used utilized for future operations which are expensive.

• Aggregate analysis − In this method we estimate the upper bound on the total cost of n steps. The amortized cost is a simple division of total cost and the number of steps (n)..
